Robust 2D Assembly Sequencing via Geometric Planning with Learned Scores

Abstract

To compute robust 2D assembly plans, we present an approach that combines geometric planning with a deep neural network. We train the network using the Box2D physics simulator with added stochastic noise to yield robustness scores—the success probabilities of planned assembly motions. As running a simulation for every assembly motion is impractical, we train a convolutional neural network to map assembly operations, given as an image pair of the subassemblies before and after they are mated, to a robustness score. The neural network prediction is used within a planner to quickly prune out motions that are not robust. We demonstrate this approach on two-handed planar assemblies, where the motions are one-step translations. Results suggest that the neural network can learn robustness to plan robust sequences an order of magnitude faster than physics simulation.

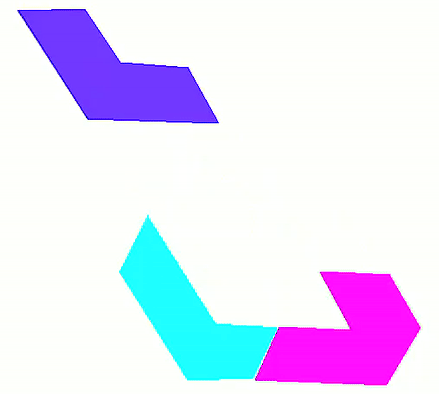

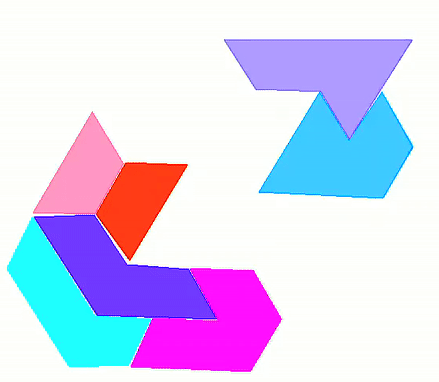

(Left) A robust assembly operation, which we find as part of the assembly sequencing, versus an operation that is not (Right), which we opt to avoid

Links

Contacts

Tzvika Geft
Dan Halperin

@inproceedings{gtgh-rtasg-19,
author = {Tzvika Geft and Aviv Tamar and Ken Goldberg and Dan Halperin},
booktitle = {{IEEE} 15th International Conference on Automation Science and Engineering ({CASE})},
title = {Robust {2D} Assembly Sequencing via Geometric Planning with Learned Scores},
year = {2019},
pages = {1603–1610},
doi = {10.1109/COASE.2019.8843109}
}

@article{gtgh-rtasg-20,
author = {Tzvika Geft and Aviv Tamar and Ken Goldberg and Dan Halperin},
title = {Robust 2D Assembly Sequencing via Geometric Planning with Learned Scores},
journal = {CoRR},
volume = {abs/2009.09408},
year = {2020},
url = {https://arxiv.org/abs/2009.09408},
eprinttype = {arXiv},
eprint = {2009.09408},
timestamp = {Wed, 23 Sep 2020 15:51:46 +0200},
biburl = {https://dblp.org/rec/journals/corr/abs-2009-09408.bib},
bibsource = {dblp computer science bibliography, https://dblp.org}
}
